Steel Electric Pole
>
|
| Place of Origin | China |
| Brand Name | JSHG |
| Certification | ISO/CNAS/IAF/CA |
| Model Number | HG-SP-13.8KV |

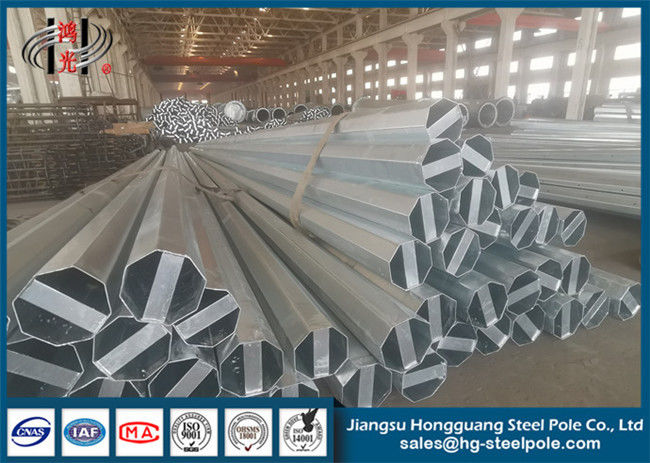

30FT, 35FT, 40FT Octagonal Steel Tubular Electric Light Pole For Philippines Market
Specifications:
|
Type
|
Power Distribution Pole
|
|||
|
Suit for
|
Electricity distribution
|
|||
|
Shape
|
polygonal or conical
|
|||
|
Material
|
Usually Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2 As well as Hot rolled coil from Q235, Q345, Q460 |
|||
|
Power
|
13.8 KV
|
|||
|
Design Load in Kg
|
300~ 1000 Kg appliced to 50cm from the to pole
|
|||
|
Surface treatment
|
Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.
|
|||
|
Joint of Poles
|
Insert mode,innerflange mode,face to face joint mode .
|
|||
|
Design of pole
|
Against earthquake of 8 grade
|
|||
|
Standard
|
ISO 9001
|
|||
|
Welding
|
We has past flaw testing.Internal and external double welding makes the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1 |
|||
|
Thickness
|
2.5mm to 4 mm
|
|||
Cutting: Cutting the raw material that have meet all the standard required into different length and width. CNC laser cutting is used to direct the material or the laser beam generated. A typical commercial laser for cutting materials would involve a motion control system to follow a CNC or G-code of the pattern to be cut onto the material. The focused laser beam is directed at the material, which then either melts, burns, vaporizes away, or is blown away by a jet of gas, leaving an edge with a high-quality surface finish.
Molding: Forming the cut steel plate into the shape (circular or polygonal or other shape ) that as per specified in the drawing. This invention relates to forming devices and more particularly to devices or machines for bending longitudinally rolled sections or strips of metal stock to desired curvilinear shapes.
Welding: After molding, weld the steel plate together. Usually it is longitudinal welds. It adopts A.C.inverter control, with functions of stable running and fast traveling speed; The seam-tracking arc-guide mechanism is three-spindle system to guarantee the alignment without aberrancy; The mainframe and welding machine are intergrated control, with flux auto-recovering system and it is easy to operate with high efficiency.
Galvanization: All poles internally and externally are to be hot-dip galvanized in accordance with requirement mentioned in the relevant drawing or specification. Galvanization standard:IS2629-1985 ,BS729-1971
We produce any dimensions and thicknesses straight round, tapered round, straight square, tapered square etc pole as your demand.
1) The main body pole adopts the technology of the disposable shaping
2) The welding seam is level and smooth
3) The welding of the lightpost is the automatic Asian arc welding
4) The antiseptic disposing of the lamp pole is the hot galvanizing and the surface is smooth and beautiful
5) Both the adjustment of the color and that of the height are alternative.
